Turbo Plumbing

This article explains the how the t-bolt and worm gear clamp work and why worm gear clamps are the better choice for securing turbo plumbing. Keep in mind there is more to holding the plumbing system together than just the hose clamps. Proper pipe beads, well constructed silicone hose with flex "humps" built in are equally as critical.



Worm gear vs T-bolt Clamp by AMS Performance

AMS Performance has a great technical document explaining why a traditional worm gear clamp works better than a t-bolt clamp for forced induction.

When it comes to securing silicone couplers to aluminum piping on the pressurized sections of a vehicle’s turbo system, there has been quite some controversy on whether a t-bolt clamp works better than a traditional worm gear clamp. Many would like to believe that the t-bolt clamp is a more failsafe method because of its rugged and thicker set design as well as the fact that it costs more than a worm gear clamp of equal size, but this is not the case. Yes, it is true that a t-bolt clamp provides more clamping force than the worm gear clamp, but the clamping force that it applies is a bit excessive and can oftentimes bend and distort the aluminum piping as more pressure is applied. A t-bolt clamp may work well when securing a silicone section to stronger, thick steel piping, but from our experience, it simply does not provide the correct clamping force when applied to lightweight aluminum piping which we have illustrated in this image below. In essence, the distribution of clamping pressure is just as important as the amount of pressure.


Because the t-bolt does not make uniform contact like the worm gear housing (as illustrated above), it produces a greater amount of clamping pressure in the areas which are circled. It also applies relatively weak clamping pressure in the area where the bolt makes less contact with the band (arrow in blue). Since the worm gear housing is situated on the band rather than above it, clamping pressure is exerted more evenly, reducing the possibility of crushing the pipe and compromising a secure seal. In any event, a high quality, stainless steel worm gear clamp will provide enough clamping pressure to safely secure silicone tubing without damaging the lightweight aluminum piping used on turbo systems - even on extremely high psi applications.


Rather than paying more for a t-bolt clamp that offers no benefit, anyone installing aftermarket charged piping on their vehicle would be better off focusing on the quality of the materials and craftsmanship of the piping, couplers and worm gear clamps that they plan to install. You can do so by using pipes made of high quality aluminum with bead-rolled ends to ensure a tight seal. Use only high grade couplers with 4-ply construction for additional strength and resistance to fatigue. Finally, only use high grade stainless steel worm gear clamps of the correct size and properly tighten them right behind the bead roll. As with any installation, periodic checks and appropriate maintenance are important. If you follow these steps, you will minimize the chance of a boost leak.


Real World Example

Nothing beats having a real world example from the highest level of Motorsports. F1 teams have millions of dollars in their development budgets but you can see here this 2014/2015 Ferrari inter-cooler uses a simple worm gear clamp and strain relief silicone "hump" hose to connect the plumbing.

F1 clamps and hose.JPG

Worm Gear Clamps

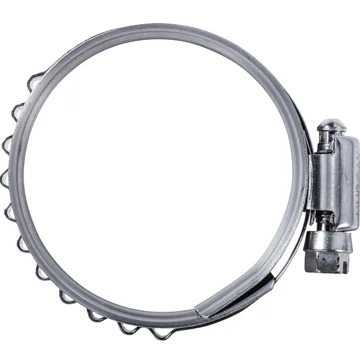

It is important to note that not all worm gear clamps are the same. The best clamps feature rolled-up band edges and a smooth band underside that prevent cutting the hose. ABA 'SMO' Clamps and Murray 'Turbo Seal' clamps are the best options for connecting your turbo plumbing.

ABA Original 'SMO'

aba smo 1.JPG
aba smo 2.JPG

Murray Turbo Seal Clamps

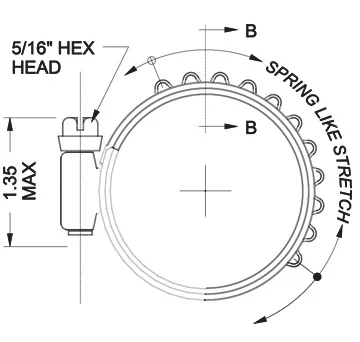

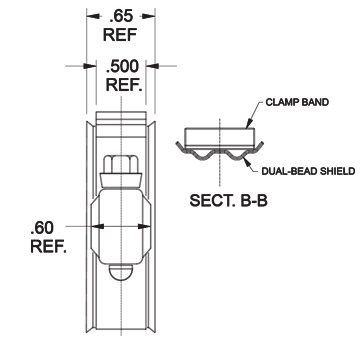

Constant Tension Turbo Seal Clamps have a convoluted heat-treated band that provides spring-like tensioning effects for thermal cycling hose applications. Murray’s unique DUAL BEAD SHIELD® concentrates band-sealing pressure, increasing performance up to 30% compared to standard smooth liners. Flanged edges protect soft hose compounds from abrasion and wear.



Click For PDF



Plumbing Tips

Properly Sizing Silicone Hose:

The silicone hose ID should match the OD of the pipe, NOT the OD of the bead on the pipe. Once the hose has been installed on the pipe and over the bead, there should be ZERO gap between the hose and pipe. This ensures the hose has even contact with the pipe around the entire circumference of the pipe BEFORE the clamping force of the clamp is applied.

Strain Relief Silicone Hose:

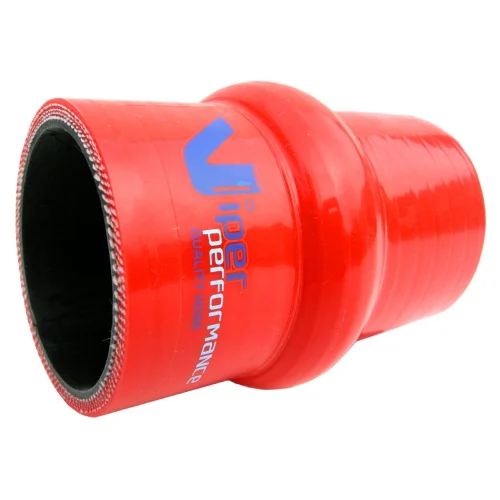

When cornering or under acceleration, the engine will move around in relation to the items mounted to the chassis. A "hump" hose allows for flex and vibration absorption which will help prevent the hose pulling off of the pipe.
