Why Öhlins? Öhlins has been an integrated part of the Motorsport industry for over 40 years. With its headquarters in Sweden, there are over 320 employees and a test center at the most demanding track in the world, the Nurburgring. Ohlins is the choice of Professional racers from Touring Cars to 24 Hours of LeMans and more. Even the new 2018 BMW M4 GT4 factory racecar is equiped with Öhlins dampers.

Key Features:

  • Street friendly with racing level technology (DFV, Temperature Compensation, and more)

  • Adjustable (20+ available clicks of adjustment)

  • 2 Year Warranty (Corrosion tested ISO 9227)

  • Customizable (Spring Rates, Valving, Mounts, etc)

What Separates Öhlins from other dampers? Inverted strut design, temperature compensation valving, the unique Dual Flow Valve (DFV), diaphragm nitrogen valve, and more. For those who want to whet their appetite about the advanced technology behind Öhlins dampers, 3DM has put together an extensive guide explaining all the details. Click Here: Öhlins Technical Guide

3dm orig grey.png

Why Purchase Öhlins from 3DM Motorsport?

3DM Motorsport has been using Öhlins dampers on street and racecars for over 13 years. A suspension kit is not a commodity, but many dealers treat them as such and typically drop ship them straight from the manufacturer. At 3DM, we have a close relationship with Öhlins and we work directly with them on special projects such as the BMW line of ‘Dedicated Track’ kits. Our in house development, upgrade, and repair capabilities of Öhlins dampers helps us provide exceptional service to our customers.



3DM Motorsport F3X Öhlins TTX Development

3DM BMW F3X Öhlins TTX shaker rig testing.



Dialing in settings



The F30 Öhlins TTX test vehicle on display at an Öhlins sponsored event.

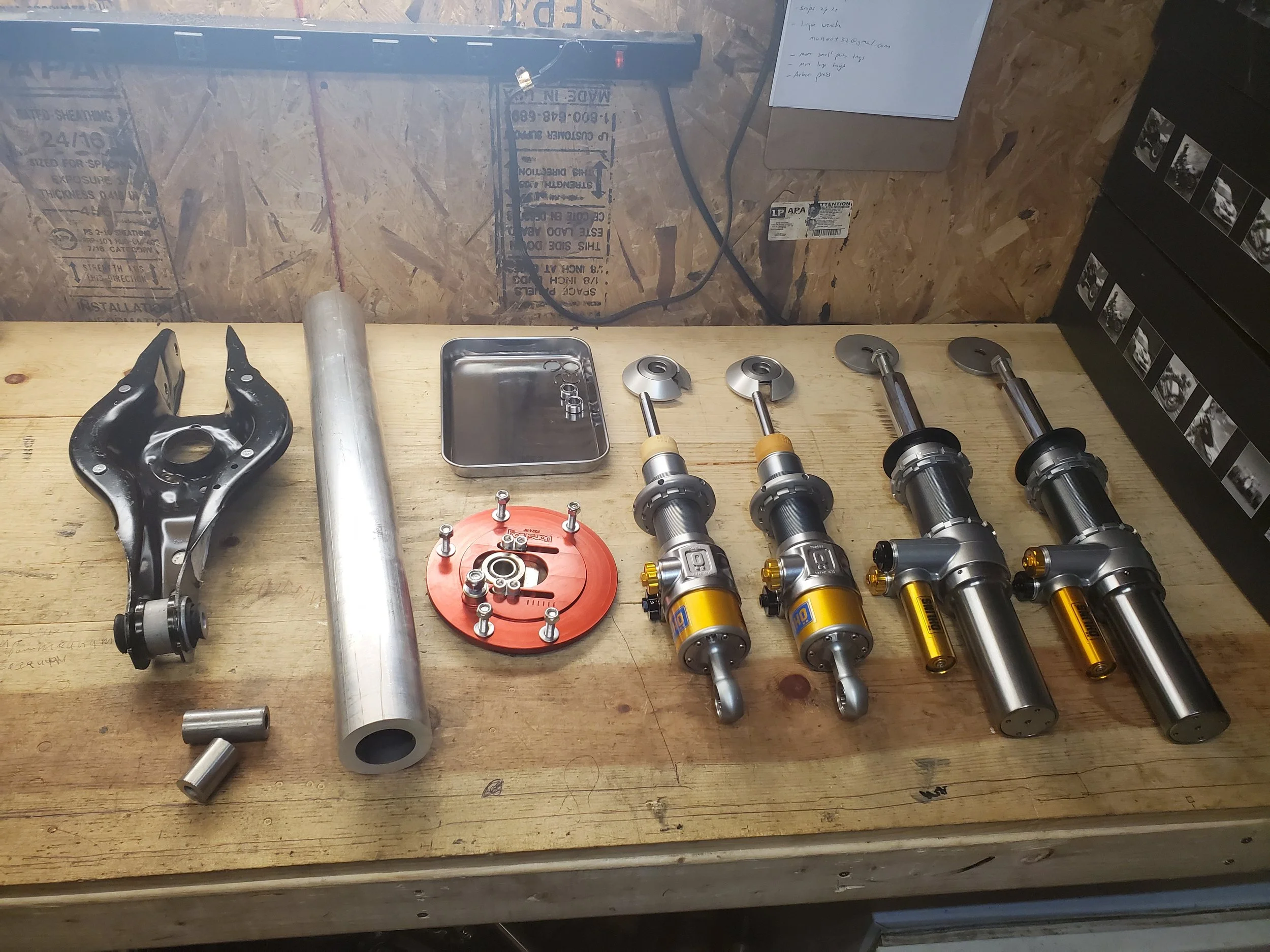

Prepping Materials for fitment


Strut dimension mockup

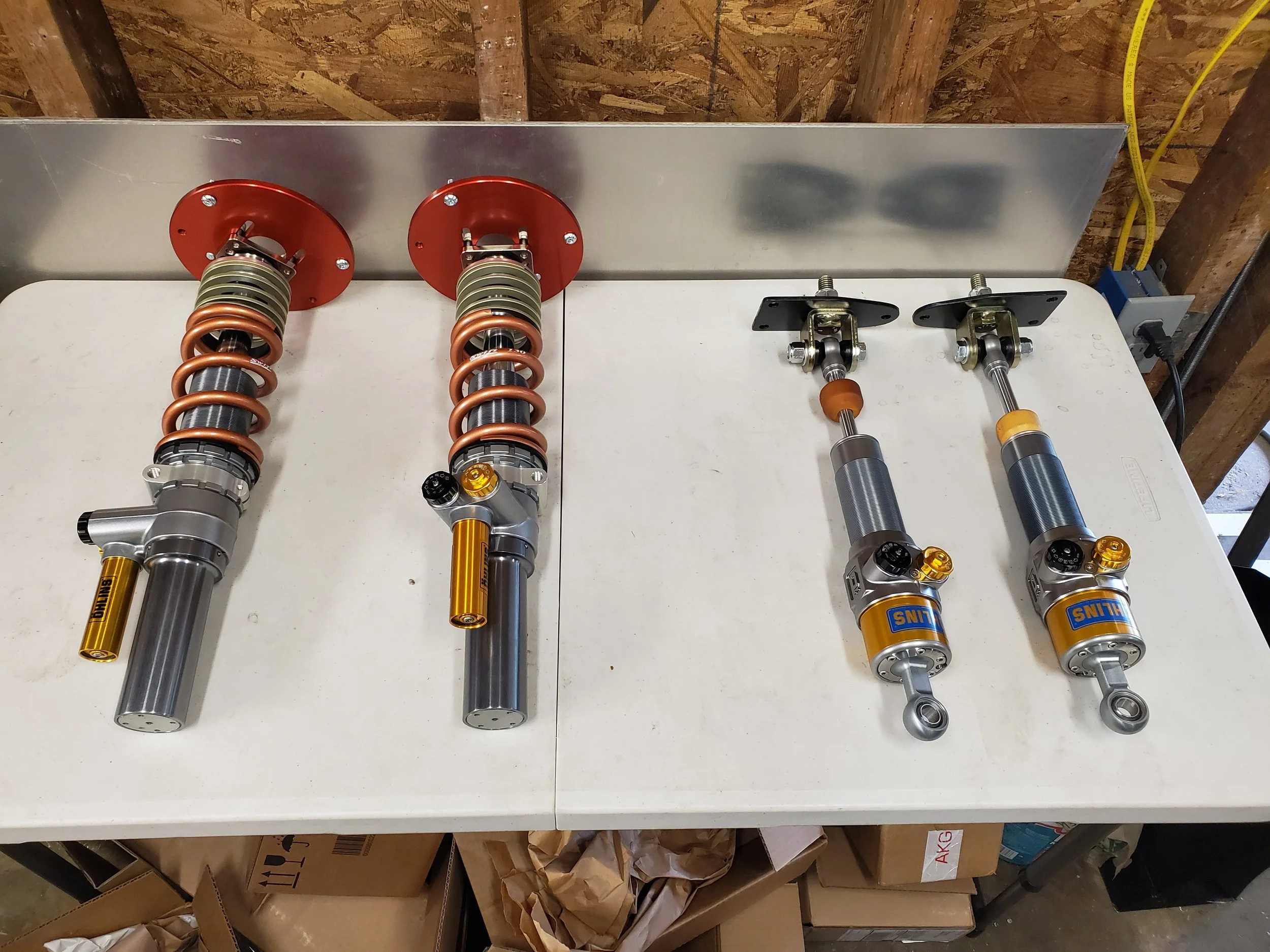

Front and rear mock up ready for install.


Installed and ready for shaker rig and track testing.



3DM Motorsport F3X ‘Dedicated Track’ Development


IMG_0219 (1).jpg

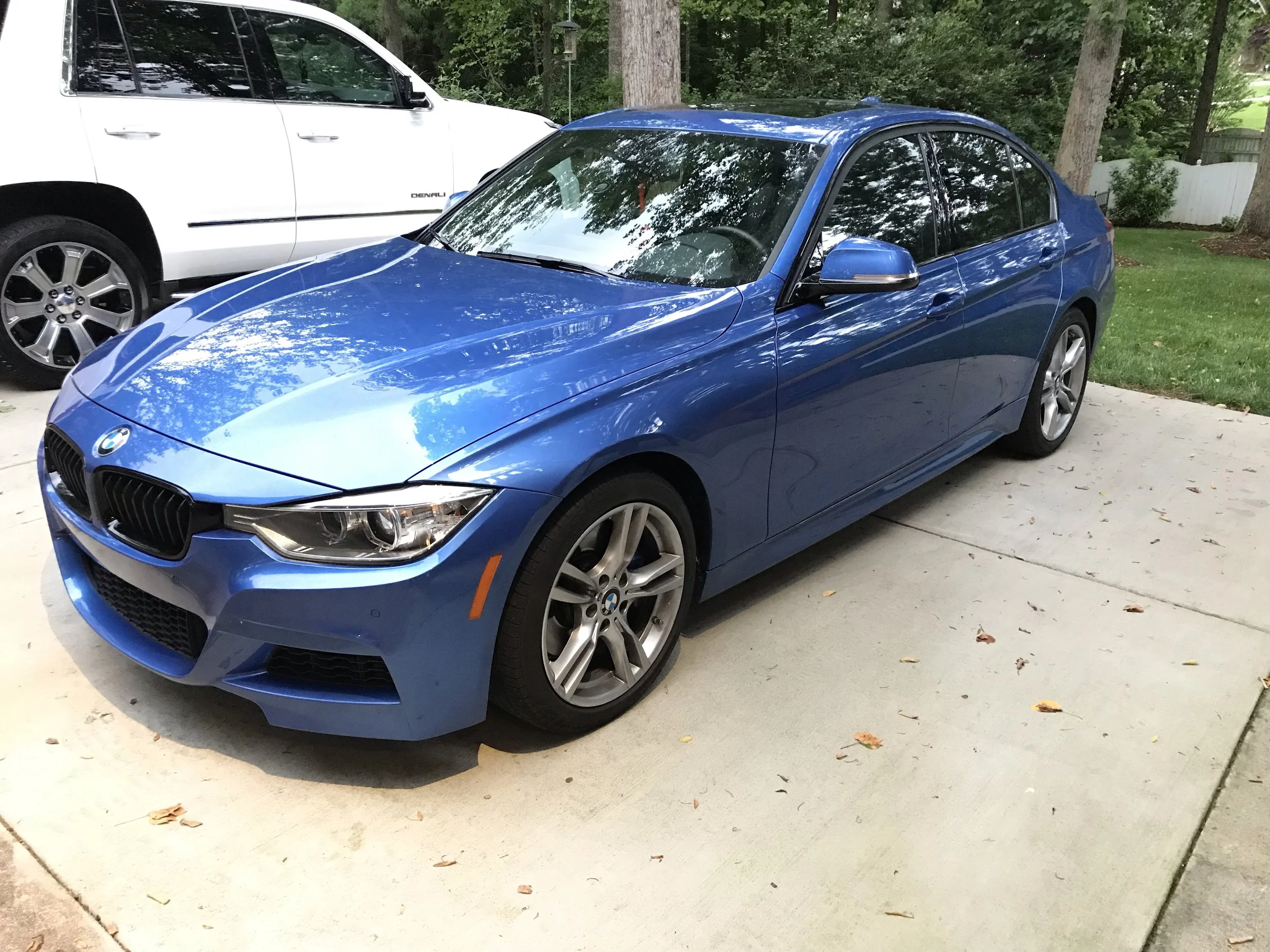

F30 328i Dedicated Track test vehicle

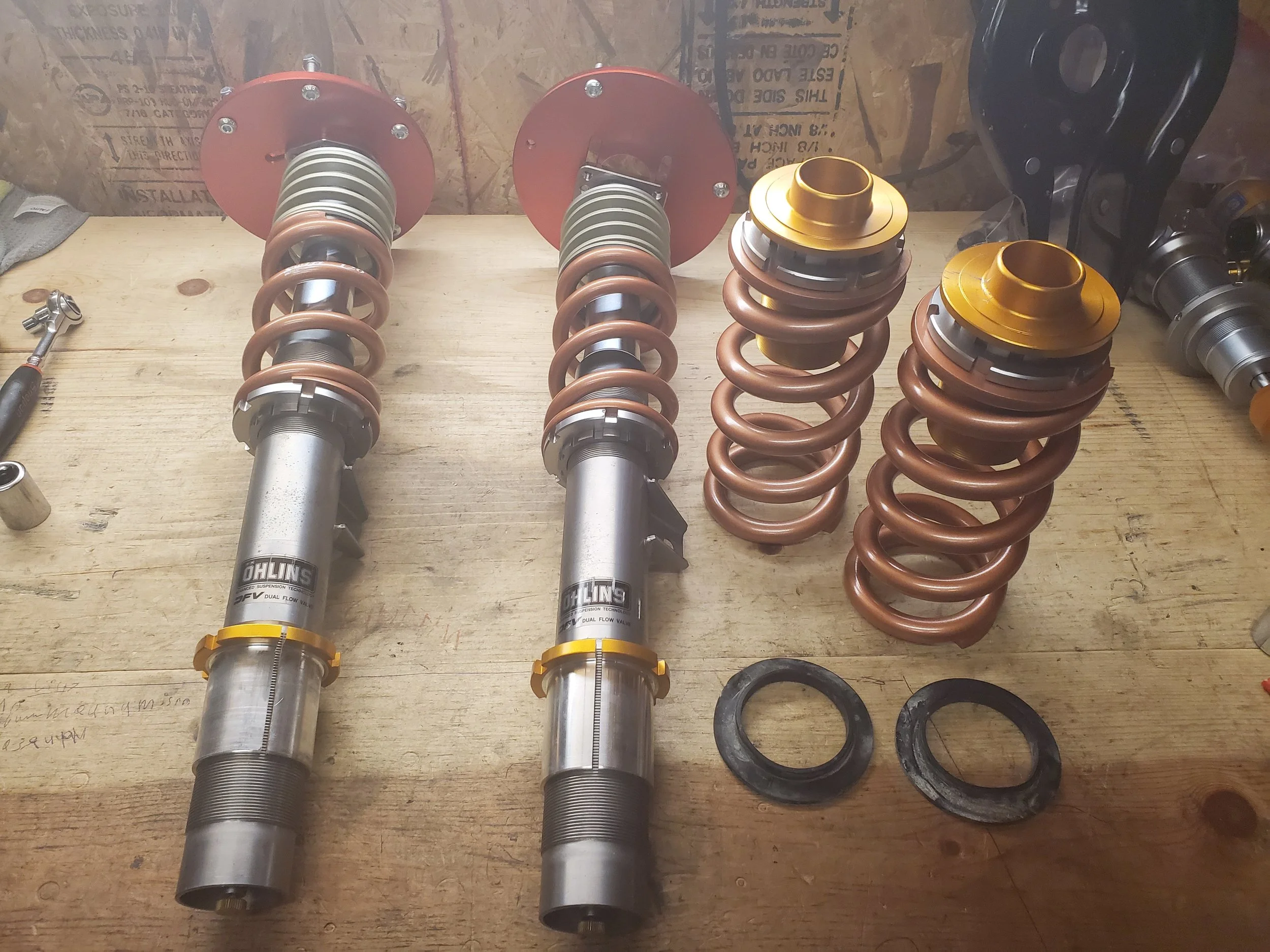

F3X Dedicated track suspension mock up ready for shaker rig and track testing.




Which Suspension Kit Is for me?

Everyone is a little bit different, or perhaps a lot different. Driving styles differ, mechanical skills differ, car upgrade paths differ, the list goes on. Before recommending a kit to someone these are some of the questions we ask…

  • What is your Personality?
    Are you a “gearhead” and like to tinker with your suspension or do you like to leave it alone and enjoy it for what it is?

  • What is the Use Case?
    How do you use your car… is it a daily driver, occasional “Sunday” driver, a dual duty street/track car, or a dedicated track car?

  • What level of NVH can you tolerate?
    When discussing suspensions, you have probably heard the term NVH which stands for Noise, Vibration, and Harshness. For example stiff springs and damper valving can be harsh while spherical bearing mounts can create excessive noise. It is important to remember that other pieces of the suspension puzzle such as differential or subframe bushings can also affect NVH.

We suggest thinking through the answers to the above questions and then browsing our kit options below to see what best fits your needs. We are always an email or phone call away if you have any questions. Contact Us



3Dm Motorsport Öhlins F3X 3/4 series suspension Kit Options


Öhlins Road and Track Kits:


F3X Öhlins Road and Track Basic Kit

F3X Öhlins Road and Track Basic Kit

F3X Öhlins Road and Track Basic Kit

F3X Öhlins Road and Track Basic Kit

(BASIC KIT)

Click Here to Purchase

These are the basic kits out of the box and un-assembled. This is what you will find on most other eCommerce sites which are drop shipped straight from Öhlins.

These kits are designed to use the OEM mounts. Depending on your application, you may need special tools such as a spring compressor to dismantle your old suspension if you intend to reuse the original OEM mounts. Alternately, can purchase new mounts and the associated specialty hardware before assembly. You will need to be fairly mechanical savvy to install this kit, otherwise we recommend a professional shop perform the install and setup.

Assuming you use OEM mounts, these kits will have factory like NVH. The spring rates are increased over OEM so there will be some slight increase in harshness.

All Kits Include: Front dampers with perches, rear dampers, springs, rear spring ride height adjuster, adjuster tools, stickers, and instruction manual. Please note the F3X cars came with multiple suspension options from the factory such as the basic suspension and suspensions with Electronic Damper Control (EDC), each requiring specific anti roll bar linkages. 3DM includes new left and right anti roll bar linkages to remove any confusion and hangups during installation.

Specifications:

  • Öhlins Part Number: BMS MP00

  • Front Spring Rate: (60 N/mm) (342 lbs/in)

  • Rear Spring Rate: (160 N/mm)(915 lbs/in)

  • Left and Right OEM anti roll bar linkages (these are included by 3DM and are not part of the base BMS MP00 kit)


Öhlins Road and Track RTR Kits:


F3X Öhlins Road and Track RTR kit

F3X Öhlins Road and Track RTR kit

(Ready to Run)

Click Here to Purchase

3DM pre-assembles the basic Öhlins Road and Track Kits with OEM mounts so they are ready to bolt up to your car out of the box. This removes the need to research and source all the pieces yourself. It also reduces the risk of getting caught mid install with an incorrect part. New mounting hardware is also included depending on the application. All ride height settings are set to Öhlins recommended starting points with spring perch jam nuts torqued. You can always request a different setting or change it yourself before install.

In most cases, basic hand tools are all that are needed to install these kits. There should be no need for complicated special tools such as a spring compressor. Every DIY mechanic operates at a different pace but with these kits you will likely cut install time in less than half over a basic kit.

If you are having your favorite shop perform the install, the RTR kits will save you labor costs as well, offsetting the extra cost of the new mounts and hardware. We recommend letting your shop know this setup comes pre-assembled so they can adjust their labor estimate accordingly.

RTR Kits Include:

  • Ohlins Road and Track kit: BMS MP00

  • OEM front top mounts and hardware and gaskets

  • OEM upper shock mounts, hardware and gaskets

  • Front anti roll bar linkages and hardware

  • Front spindle clamp hardware

  • Front spindle clamp spreader tool

  • Rear lower shock mounting hardware


Coming Soon!
3DM TrackDay Series Kits:


e46 m3 track day.jpg

(Track Focused, Street Friendly)

Our ‘TrackDay Series’ kits take the Öhlins Road and Track dampers to the next level while still retaining street-ability. While you certainly can “set it and forget it” with these kits, they are geared more towards the person who wants to tinker with their suspension on a regular basis.

These kits are not “shopping cart” developed. Tweaks to each component have been made to ensure proper fitment and the ultimate performance.

Contact Us to be put on a notification list when these kits are available


Coming Soon!
Öhlins Dedicated Track Kits:


F3X ‘Dedicated Track’ Kit Under Development

F3X ‘Dedicated Track’ Kit Under Development

(Competitive, Not Complicated)

These kits have been designed for cars that see nothing but track use. They are similar in fitment to our TrackDay Series kits but with much higher spring rates and valving to match including a modified Dual Flow Valve setup. All mounts are spherical bearings.

All Kits Include:

  • Re-valved dampers

  • Race Springs

  • Camber plates

  • Spherical bearing rear lower shock mounts

  • Spherical bearing rear upper shock mounts

  • Ohlins Rear Ride Height Adjuster and Spring Perches

Contact Us to be put on a notification list when these kits are available


Coming Soon!
Öhlins
Motorsport Kits:


3DM Motorsport F3X Öhlins TTX Motorsport Suspension Kit (Under development)

3DM Motorsport F3X Öhlins TTX Motorsport Suspension Kit (Under development)

Front TTX 46 Strut Damper

Front TTX 46 Strut Damper

Rear TTX 36 ILX Damper

Rear TTX 36 ILX Damper

(The ultimate racing suspension)

These are for the serious racer looking for the extra edge. TTX is a twin tube damper that is fully pressure balanced eliminating the risk of cavitation, enabling the use of low gas pressure which keeps friction at bay. The low amount of hysteresis results in excellent short stroke/high force performance.

Front: TTX 46 Strut Damper: The TTX 46 strut damper is available in 2 way, 3 way, and 4 way adjustable. Through rod technology removes gas pressure from the piston shaft reducing friction tremendously.

Rear TTX 36 ILX Damper: Available in 2 way, 3 way, and 4 way adjustable. The inline reservoir creates a compact package as there is no need for an external reservoir.

Contact Us to be put on a notification list when these kits are available or to discuss your individual racecar needs.



Re-valve | Repair | upgrade Services

Already own an Öhlins Road and Track suspension kit? Whether you purchased it from 3DM Motorsport or not, we offer a a suite of services to suit your needs. Please Contact US for further information.

Rebuild services:
Its a good idea to have your dampers serviced on occasion. Just like oil in your engine, shock oil doesn’t last forever. There is no set interval like an engine oil change, It all depends on the abuse the dampers have gone through. A general rule of thumb is every 1 to 2 years of track use and approximately every 4 years of street use.

Re-valve Services:
Making a drastic setup change or not happy with the way your car is reacting dynamically? We can re-valve your dampers to help dial in that new setup. Each re-valve comes with a pre and post dyno sheet for record keeping purposes.

Upgrade Services:
‘Basic’ and ‘RTR’ kits can be upgraded to ‘3DM TrackDay Series’ kits or ‘Dedicated Track’ kits. We have all the appropriate hardware as well as valving spec cards to change over your kit and take it to the next level.
